Assembler clone detector

This program tries to detect potential candidate clones that arise in assembler code, typically derived from C and C++ source code. It can perform clone detection on C, C++, and assembler produced from other source languages. It only runs on platforms that generate linux gcc/g++ assembler for the intel machine language.

The supporting paper can be found here.

Download ACD

ACD is a clone detector, that discovers similarities in assembler by examining augmented lines of assembler.

The latest builds of ACD are available below. While effort has been made to test ACD, the software may contain bugs. In particular current versions of this software are likely to require test driven development, since some of the internals of this program have expectations about the format of the assembler examined which might potentially change from release to release of gcc, and g++.

Since the dwarf standard differs on 32bit .v. 64bit machines, on machines that use 64 bit pointers define the macro DWARF64 to communicate this.

ACD 1.0.14 [acd-1.0.13.zip] Sun 64bit executable
ACD 1.0.13 [acd-1.0.13.zip] Sun 32bit executable Sun 64bit executable
ACD 1.0.12 [acd-1.0.12.zip]
ACD 1.0.11 [acd-1.0.11.zip] Sun 64bit executable
ACD 1.0.9 [acd-1.0.9.zip] Sun 32bit executable
ACD 1.0.8 [acd-1.0.8.zip] Sun 32bit executable
ACD 1.0.7 [acd-1.0.7.zip] Sun 32bit executable
ACD 1.0.6 [acd-1.0.6.zip] Sun 32bit executable
ACD 1.0.5 [acd-1.0.5.zip] Sun 32bit executable
ACD 1.0.4 [acd-1.0.4.zip] Sun 32bit executable Sun 64bit executable
ACD 1.0.3 [acd-1.0.3.zip] Sun 32bit executable Sun 64bit executable
ACD 1.0.2 [acd-1.0.2.zip] Sun 32bit executable Sun 64bit executable
ACD 1.0.1 [acd-1.0.1.zip] Sun 32bit executable Sun 64bit executable
ACD 1.0.0 [acd-1.0.0.zip] Sun 32bit executable Sun 64bit executable

ACD is being constantly developed and improved; check back often for newer versions.


acd [-a i/nstructions|l/ines] [-b] [-C <count>] [-d] [-D] [-e] [-f] [-F] [-G <clics_source_file>] [-g <clics_assembler_file>] [-h <directory>] [-k] [-l <min>] [-L <min>] [-M] [-m <cost>] [-s <cost>] [-S] [-r] [-R] [-t <output.ta>] [-T <count>] [-u [-I <number>] [-E <seconds>] ] [-v] [-z] < buildHistory


The -a option establishes boundaries at which clone detection may be performed. If line boundary is specified matching of assembler clones may only begin at the first assembler instruction associated with a line of text in the source, assuming that such line boundaries are known, as consequence of having compiled the source the the -g option. Otherwise any assembler instruction may constitute the start of a sequence of matching assembler instructions. Line matching is the current default.

The -b option causes ACD not to find the longest possible valid clones, but rather to truncate such clones at the point where the computed weight associated with the clone is maximal. This will have the effect of truncating clones prematurely, while making the clone detected potentially seem more reasonable. However, by reducing clone length it may invalidate some clones that would otherwise be reported.

The -d option causes the assembler associated with each function to be printed, as it appears for clone detection purposes. This option permits some validation of the correctness of this assembler.

The -D option causes the computed positions and sizes of variables and arguments associated with a function to be dumped. This option permits validation of the complex task of reverse engineering from the textual assembler this information encodes as per the dwarf 2.0 and 3.0 standard.

The -e option permits assembler instructions derived from the same source file and line number to be permitted to form the first pairing in a clone pair. Distinct assembler instructions will be derived from the same source file and line number when they are generated by the same macro definition. Thus this instruction indicates that trivial clones derived as a consequence of repeated use of the same macro are to be reported. In situations where a large macro is used to inline the same code extensively, the reporting of all possible pairings of such macro usage is potentially huge, and the run time costs associated with detecting all such trivial pairings potentially very painful. Some valid clones that begin (and perhaps continue) with common macros with not be detected unless this option is set.

The -f option disables references to offsets from the frame pointer being replaced in the assembler by the corresponding variable/argument name in the source that these frame offsets represent (as derive from the debug information when the assembler has been compiled using the -g option). If clone detection is to treat variable as the same only if they occur at the same position in the stack, rather than when having the same name, use the -f option.

The -F option similarly disables references to temporary variable generated by the compiler which have no corresponding source variable name being replaced by names of the form t.0, t.1 etc. in the order of first usage. It is presumed that the scope of such temporary variables is limited to assembler instructions derived from a common source statement (as established by assuming that separate statements occur on different lines of the source).

The -G option causes acd to emit the named file with the location of clones found in the source code, in the clics output format. Similarly, the -g option causes acd to emit the named file with the location of the actual clones found in the assembler. If the path contains no '/' this path is presumed to be with respect to the html directory.

The -h option creates html web pages under the named directory, which individually are managable (though potentially huge in number), and linked to the much smaller root page created with the name "index.html" in this same directory. Absent this option no detailed output about clones is produced, and -R and -r is implicitly implied.

The -t option generates a graph showing how clones are related that can be directly viewed by lsedit. When used with the -h option, edges showing how clones are related contain an html attribute indicating the html page number generated using the -h option, that further describes this relationship. If the filename contains no '/' and the -h option is specified, the TA graph is placed in the directory specified by the -h option, and linked for easy download from the main html page.

The -T option specifies how many of the top clones are to be remembered and reported in their own page. The default is 1024. The weight reported (and used in the ordering) is the sum of the lengths of the two matching clones, adjusted so as to not count multiple lines of macros if the -M option is specified. This report is tabular having as many columns across the page as specified by the -C option (default 8). This option requires the -h option, as well as not both of the -R and -r options.

The -k option instructs acd not to delete any assembler files that it generates. Instead they remain following execution of acd, permitting direct examination of them. See also the -S option.

The -l option specifies the minimum number of assembler instructions that may constitute a clone. This value currently defaults to 15. Both sides of the comparison must involve this minimal number of assembler code instructions be they matching or unmatching instructions, or at least one sequence of assembler instructions must correspond to all the instructions in a function.

The -L option specifies the minimum number of assembler instructions that may constitute a clone when these instructions correspond to all the instructions in a function. This value currently defaults to 14.

The -M option seeks to avoid reporting clones that result purely from inclusion of the same macros. Clones involving multiple assembler lines originating from the same location in the same header file, are counted for matching purposes as a single instruction.

The -m option provides as a positive number the mismatch cost, which by default is 1. A larger mismatch cost strongly biases the clone detection algorithm towards avoiding declaring sequence of assembler to be clones of each other when mismatches occur within these sequences. A very large cost effectively insists that clones may contain no mismatches.

The -s option provides as a positive number the matching cost, which by default is 1. A larger same cost increases the degree to which the clone detection algorithm is forgiving of mismatches, as the number of earlier matches seen increases.

The -S option skips the compilation of source to assembler, when the assember is already existing. This is an efficiency option, designed to avoid needlessly recompiling source to assembler, every time acd is run.

The -r option indicates that the clone detection output is not to report the corresponding lines of source code that match the assembler examined. This option will reduce run time signicantly, since source code will not be repeatedly scanned to find desired line that must be printed. Note that assembler files not produced with the debug information included within them as consequence of having been produced by compiling with the -g option have no line number information, and thus do not permit recovery of this source code information.

The -R option indicates that the line by line comparison of assembler instructions is not required in the output. This will substantially reduce the size of the clone detection output, at the expense of considerable loss of information.

The -u option specifies how aggressive the hill-climbing optimisation should be in attempting to improve originally discovered clones.

If the -v option is specified then acd reports each sources file read, upon successful completion of that processing. In addition, any internal compiles performed will be reported on the standard error output.

The -z option permits correlation between the clones detected by ACD and some other clone data hard coded by an experimenter into data.cpp. This option is of no use to the casual user.

Input format

ACD expects to read from standard input a build history describing how C, and C++ source code is to be built. The format and method of capturing this history is described in the documentation for asx. Use of this same input history file, permits both fact extraction and clone detection to be performed on arbitrary source code ( providing that this source can be compiled ) using the same build instructions for both programs.

Clone detection algorithm

The matching algorithm used by acd is based on that used by jcd.

The software begins by reading into memory the machine instructions present in each created/discovered assember file used in the build process. These instructions are stored within arrays and a certain amount of instruction manipulation is performed to improve clone detection.

Every assembler instruction is hashed so that alternative candidate assembler instructions that match a given instruction can be reduced to a managable number, helping to reduce run time from O(n^2) to O(n).

Typically two assembler instructions match if they refer to the same operation applied to the same variables. However branch instructions match if they are the same instruction and branch in the same direction.

Starting with two distinct assembler instructions established as matching, the clone detection algorithm examines all pairings of subsequent assembler instructions seeking a further match. A greedy algorithm is used to locate the next matching pair of assembler instructions. Specifically, for incrementing numbers of skipped assembler instructions, all pairs of assembler instructions which involve precisely this number of skipped assembler instructions are searched for a match.

This greedy algorithm finds pairings of matched assembler instructions that occur in the same sequence potentially interleaved with non-matched assembler instructions. It imposes the further contraint that no match branching instructions branch to before the start of the clone sequence and that the instructions branched to do not lie on opposite sides of any other matched pair of assembler instructions.

Every matched pair of assembler instructions is assigned a positive match weight, and every prior unmatched assembler instruction a negative mismatch weight. The pairing of assembler instructions performed as part of clone detection terminates when no further assembler instructions exist to be matched within the method(s) being compared, or when the cumulative weight of all the assembler instructions observed as part of clone detection becomes negative. At this point the software discards from each clone the final assembler instructions in the assembler sequence not followed by a matching assembler instruction.

Thus if the matching and mismatch wieghts are the same value, clone detection terminates when more mismatched assembler instructions have been seen within the two sequences than matched ones.

This algorithm can miss long sequences of clones when false matches occur. For example consider the sequence of assembler below:


Sequence1 will naturally match, but if sequence2 is long enough, the two initial XYZ entries will be matched, instead of Sequence3. Then (assuming nothing in Sequence3 matches anything in Sequence4) Sequence4 will match.

If the argument to -u is greater than zero, then after initial detection of matching pairs, a hill climbing algorithm is invoked to address the above problem and so improve the result. If the result is improved, then since the weight associated with the clone is now larger, further extension of the clone is attempted using the basic algorithm followed by the hill-climbing algorithm.

All ways in which instructions in the first and second clone sequence might match are computed, with each such possible matching being considered an edge between the two assembler instructions. Matched edges are those derived from currently matched pairings of assembler instructions.

Then all conflicts between distinct edges are computed. Distinct edges conflict if they share a common end point, or if they cross. Edges derived from branch assembler instructions conflict with other edges if the assembler pair branched to lie on opposite sides of the other edge. When both edges derive from branch instructions a conflict also occurs if the assembler branched by one edge to lies on the opposite sides of the assembler branched to by the other edge.

An unmatched edge is blocked from being matched, by the number of matched edges which conflict with it. For each unmatched edge having at most the number of edges blocking it specified in the -u option, in increasing number of edges blocking such edges, a test is performed to see if unmatching all the edges blocking this edge, permits more than the current number of matched edges to be matched. If it does this change is applied. Upon having examined all edges if some improvement has been achieved this algorithm is repeated. If -I is also specified this is repeated at most the specified number of iterations. If -E is specified with a non-zero number of seconds, hillclimbing for any given clone pair is executed at most this number of seconds before terminating with whatever improvements have been made within this specified time duration. This value currently defaults to 60 seconds.

Upon any improvement the initial matched sequences reported to the hill-climbing algorithm can be extended (since more matches have now occurred within it) and this process repeated.

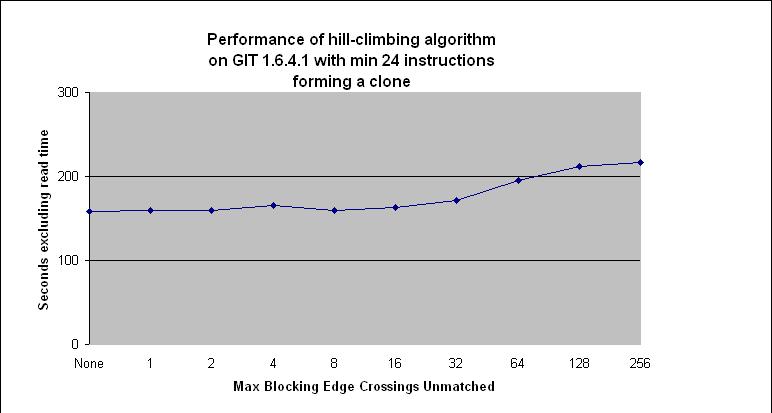

The hill climbing algorithm requires considerable memory. If there are n instructions to be compared with m instructions there are O(n * m) edges. If there are e edges there are O(e * e) intersections of these edges. Thus comparing 1,000 instructions against 1,000 instructions produces O(10^12) ie O(1,000,000,000,000 crossings. If there are more than 65,535 (ie 2^16) ways of matching individual assemmber instructions within a clone (edges), more than 134,217,728 (ie 2^27) conflicts between these edges, or an inability to allocate sufficient memory to accomodate the edges and edge crossing information the hill climbing algorithm reports this and cleanly aborts the attempt to improve the results presented to it.

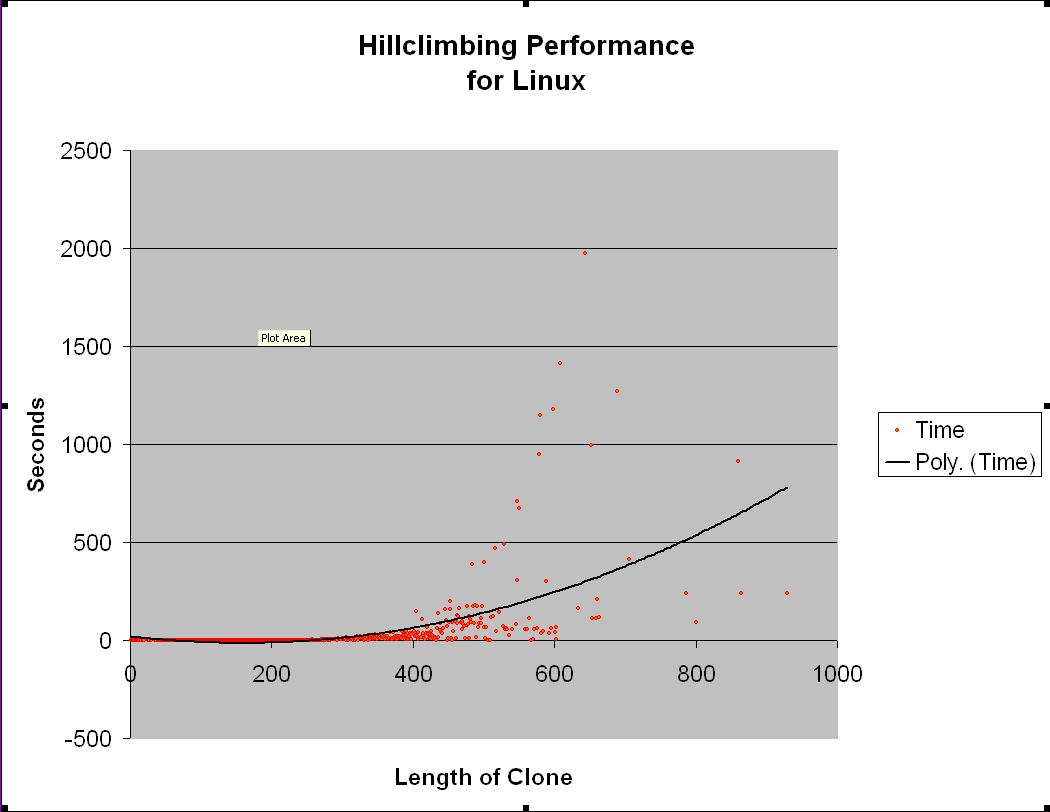

When the length of clones increase dramatically the hill climbing algorithm can take a considerable amount of time to run. The average time to execute the hillclimbing algorithm, allowing remove of up to 256 blocking edges, for clones obtained from linux is shown below. The clone length is the average length of the two clones.


This program outputs html that can be viewed in any suitable web browser. The output shows sections of assembler that are similar or the same to other sections of assembler. If the assembler has been created using the -g option and the -f/-F option is not employed similarity of local variables is predicated on their given name. Otherwise it is currently predicated on the position of these local variables on the stack.

If the -h option is used a three tier html reporting structure is employed with the root of this structure being in the file 'index.html' within the indicated directory. The top tier hyperlinks to distinct pages for each class file examined. That page describes the clones found in this class file that match all later assembler either in the same class file or in later class files examined. The third tier shows for each such identified potential clone the actual assembler, and source code that justified reporting of this clone. Note that this option can potentially produce a huge number of small viewable files.

Color coding is employed to draw visual attention to certain details. Differences between code is highlighted in red on the left side, and blue on the right. Lines derived from identical source and line numbers (if determined to be identical) are shown with the background grayed out, to highlight that they are effectively the same as the result of macros, or file inclusions. Note that it is entirely possible for the same line of source to produce different assembler, if macros within it are themselves derived from different sources. Note that the -r and -R options determine detail provided in the output produced. It is recommended that neither option is used except when disk space is at a premium, since when the -h is specified each output page employs DHTML to permit viewing and or hiding of the source and assembler in an interactive manner.

Graphic output suitable for viewing using lsedit which can be hotkeyed (using lsedits command feature) back into the html pages and/or the source code can also be produced using the -t option.

Dwarf standard

The hardest challenge in the implementation of this code was to correctly interpret within the contents of the assembler source code, the data structures that within the object code would convey debug information, so as to facilitate dynamic debugging as employed for example in gdb.

It is this information which permits reverse engineering of the C and C++ variable names, from assembler which refers to such variables as being unnamed variables identified by offsets from the current frame pointer. These data structures conform to the dwarf standard, which is itself a very complex standard designed to be sufficiently powerful to permit use under arbitrary machine architectures and across diverse chips.

Note that the dwarf standard is a standard that defines the interpretation of sequences of bytes in object code; and so to use this standard in assembler source it is necessary to not only parse the assembler source but be able to translate that source into the expected byte sequence appearing in object code produced from this assember, and since references are embedded within this byte sequence to bytes in the same and other sections, to know the exact offset of bytes referenced within the conceptual dwarf data structures embedded within sections of the object code produced from the assembler source examined.

For documentation on the dwarf standard see:

For documentation on name mangling see:

The version of the standard employed by an arbitrary compiler can be determined by examining the dwarf header record, that occurs at the start of the .debug_info section. Currently both gcc and g++ on swag and swag-new generate dwarf according to version 2 of this standard.


If an exception or interrupt such as generated by keyboard input of Cntl-C is raised, this program terminates its current efforts to detect clones, and after reporting the observed exception terminates in a fashion which permits the results so far generated to be viewed.

Example output

A clone in GIT

Example usage

rm -r /home/ijdavis/public_html/linux
acd -v -k -S -M -T 2048 -t linux.ta -h /home/ijdavis/public_html/linux < history.linux

See also:

jcd, asx, jcd.

Developed by

  • Ian Davis.


  • swag:~ijdavis/src/acd -- source code
  • swag:~ijdavis/bin/acd -- executable
  • swag-new/bin/acd:~ijdavis/bin/acd -- 64 bit executable

Supported platforms

Sun machines that produce from gcc and g++ assembler for intel chips using the linux assembler conventions.


  • Subject to change.. still under development.
